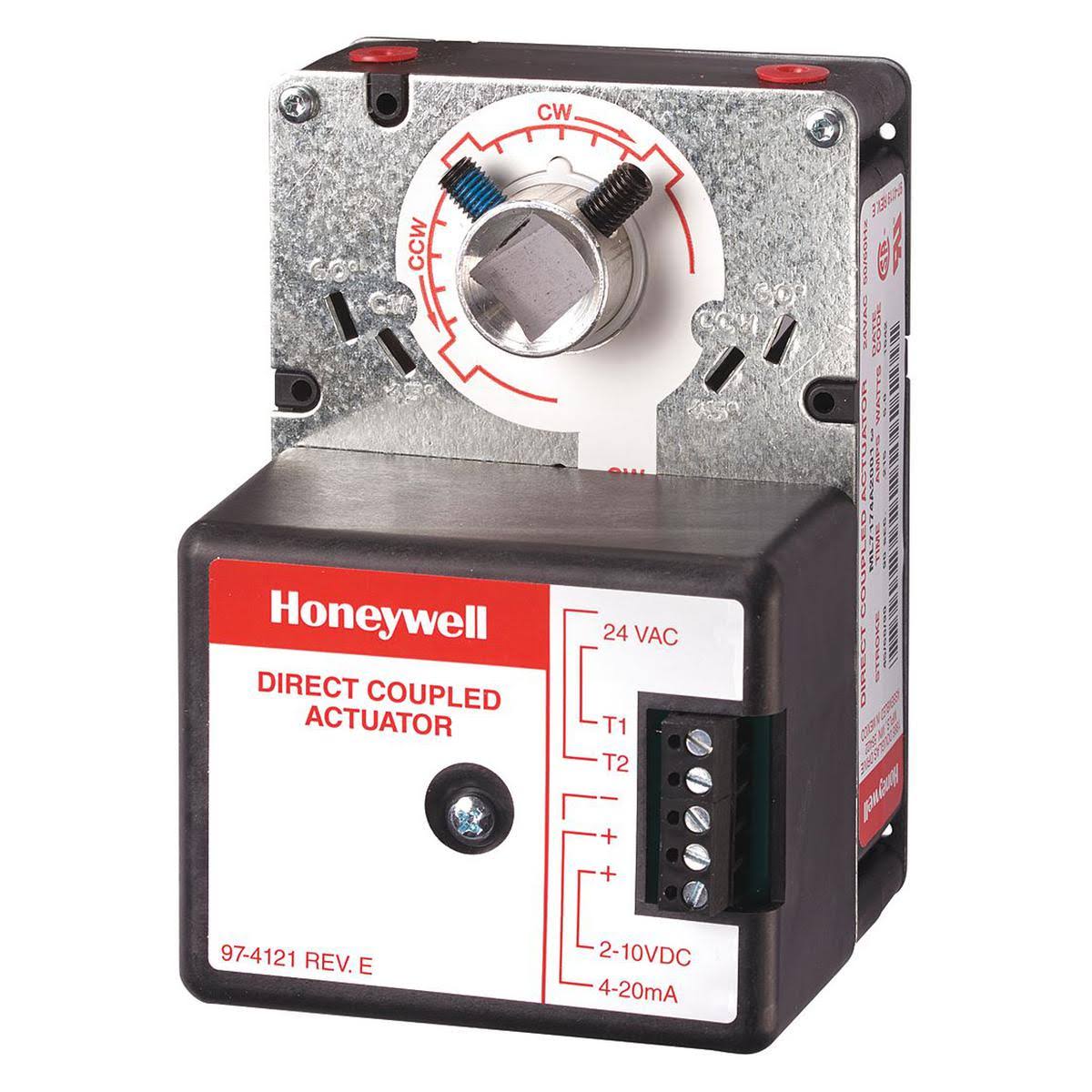

Electric Actuator, Honeywell, ML7174A2001 OJA11_X1767

Product details:

Electric actuatorsnon-spring return actuator, 2-10 vdc, 4-20ma, shaft type aluminum hub, torque 70 in-lbs, 90 stroke deg, height 5 9/16 in, width 3 3/8 in, depth 3 in, electrical connections screw terminals, ambient temp. Range 20 to 125 f, power consumption 5.4 Va, timing 90 sec, voltage 24 vac -20 percent, for use with vav dampers, includes 4074eny bag assembly.
