Aeromotive 13301 Universal Bypass Fuel Regulator KBX63_B4447

Product details:

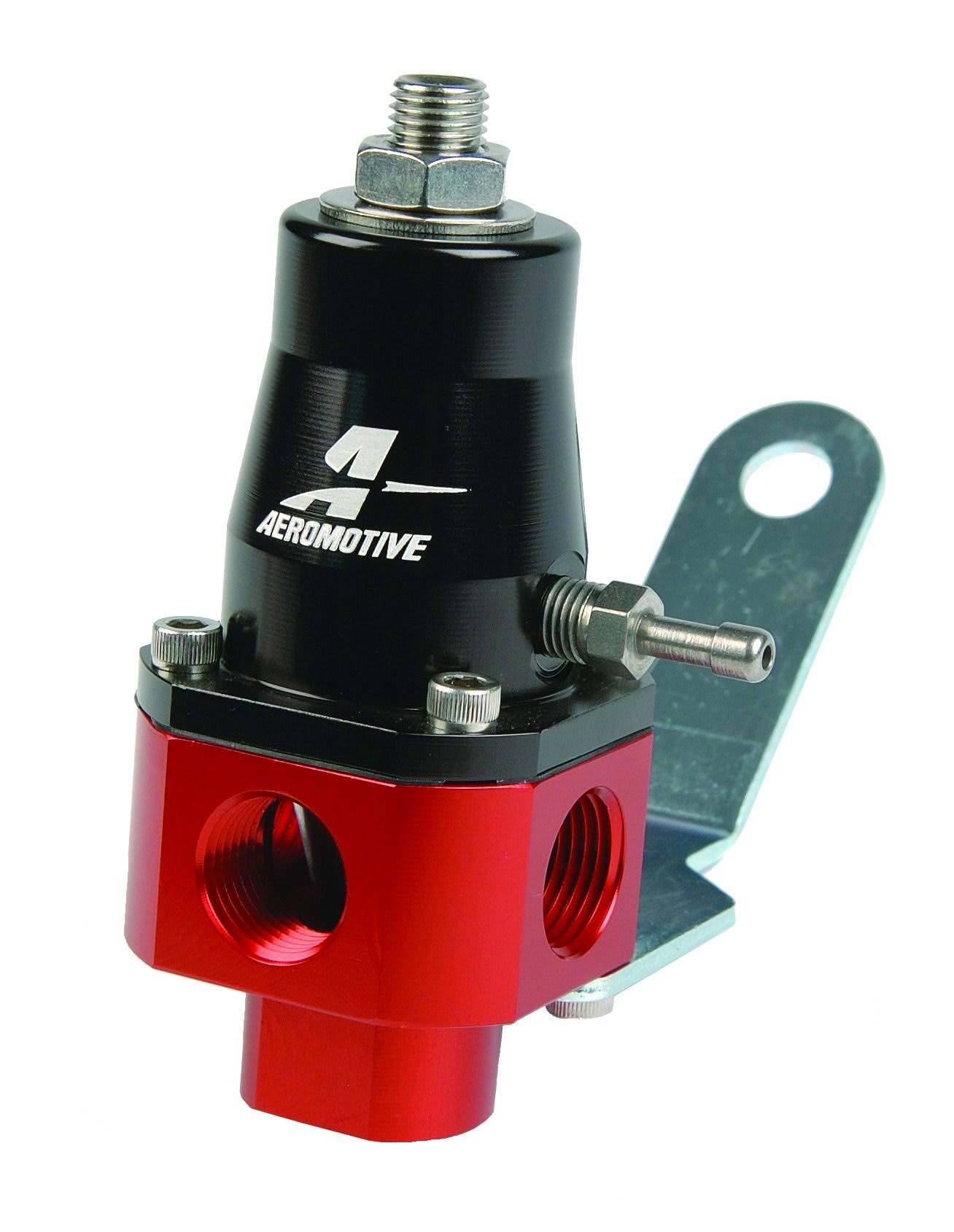

A27-13301 Dual purpose, universal regulator for carbureted or EFI fuel systems in street or track applictaions. Base pressure adjustable from 3 to 20 PSI with standard spring (installed) or 20 to 60 PSI with high pressure spring (included). Ideal for carbureted and EFI bypass applications where more flow and superior pressure control are desired. Developed for optimum compatibility with Aeromotive's Street / Strip (SS) Fuel Pump,this bypass style regulator is capable of handling any fuel pump up to 250 GPH. Replace deadhead regulator performance and experience the full flow volume and rock steady fuel pressure that ony a dynamic, Aeromotive bypass regulator can provide. FEATURES: Fuel pressure will rise on a 1:1 ratio when referencing boost. All ports are 3/8 NPT, with one inlet and three outlets around the main body and one return port on the bottom. Beautiful type II bright dip anodized finish. Requires a return line to be installed from the bottom of the regulator to the top of the tank.
